LE-IW1330-6: 1" Magnesium Composite Impact Wrench with 6" Extended Anvil
6-inch extended reach meets ultra-lightweight power (4.6kg). The professional choice for deep truck wheels and industrial fastening.
LE-IW1330-6 1" Magnesium Composite Air Impact Wrench (6" Extended Anvil)
Deep Reach Capability | Ultra-Light 4.6kg | 2,600 ft-lb Torque
Product Overview: Reach Deeper, Work Smarter
This 1-inch extreme composite air impact wrench with a 6-inch extended anvil is designed for heavy-duty fastening and loosening tasks that require deeper reach. The extended anvil allows operators to access recessed, shielded, or obstructed fasteners more easily, reducing the need for additional tools or extension bars.
Combined with a robust Twin Hammer mechanism and reinforced Magnesium Composite housing, this tool delivers reliable torque output (2,600 ft-lb) while maintaining an ultra-light weight of 4.6 kg for continuous professional use.
6” Extended Anvil vs. Standard Anvil: What's the Difference?
Key Difference: The 6-inch extended anvil design focuses on accessibility, efficiency, and professional-grade usability in deep, obstructed environments.
🏆 6” Extended Anvil (LE-IW1330-6)
- Better Access: Easily reach recessed fasteners in truck wheels.
- Improved Efficiency: Direct power transfer without extension bars.
- Reduced Repositioning: Work faster in deep fastening tasks.
⚠️ Standard Anvil Impact Wrench
- Limited Reach: Struggles in obstructed or deep areas.
- Requires Extensions: Adding extension bars can reduce torque transmission.
- Less Efficient: Takes longer to set up for deep applications.
Technical Features & Functions
- Extended 6” Anvil Design: Improves accessibility in confined or recessed working areas, ideal for dual wheels.
- High-Torque Performance: 2,600 ft-lb of nut-busting torque designed for large fasteners and heavy-duty applications.
- Durable Composite Construction: High-strength magnesium composite housing is resistant to deformation and harsh working environments.
- Controlled Operation: Features smooth trigger response and easy Forward/Reverse switching for professional, high-frequency usage.
Essential in Industrial Applications
- 🚛 Fleet & Tire Service: Truck and bus maintenance technicians.
- 🏗️ Construction & Infrastructure: Heavy equipment and machinery service crews.
- 🚢 Heavy Industry: Shipbuilding, rail, oil & gas, and industrial MRO operations.
Technical Specifications
| Model Number | LE-IW1330-6 |
|---|---|
| Anvil Type | 6" Extended Anvil |
| Square Drive | 1" (inch) |
| Impact Mechanism | Twin Hammer |
| Nut-Busting Torque | 2,600 ft-lb / 3,526 Nm |
| Max. Torque | 1,600 ft-lb / 2,170 Nm |
| Working Torque | 1,300 ft-lb / 1,763 Nm |
| Free Speed | 7,000 RPM |
| Product Weight | 4.6 kg / 10.12 lbs (Ultra-Light) |
| Product Length | 520 mm / 20.50 inch |
| Air Consumption | 7.0 CFM (198 l/min) |
| Air Inlet / Hose Size | 3/8" (Inlet) / 3/8" (Hose I.D.) |
| Working Pressure | 90 PSI (6.3 kg/cm2) |

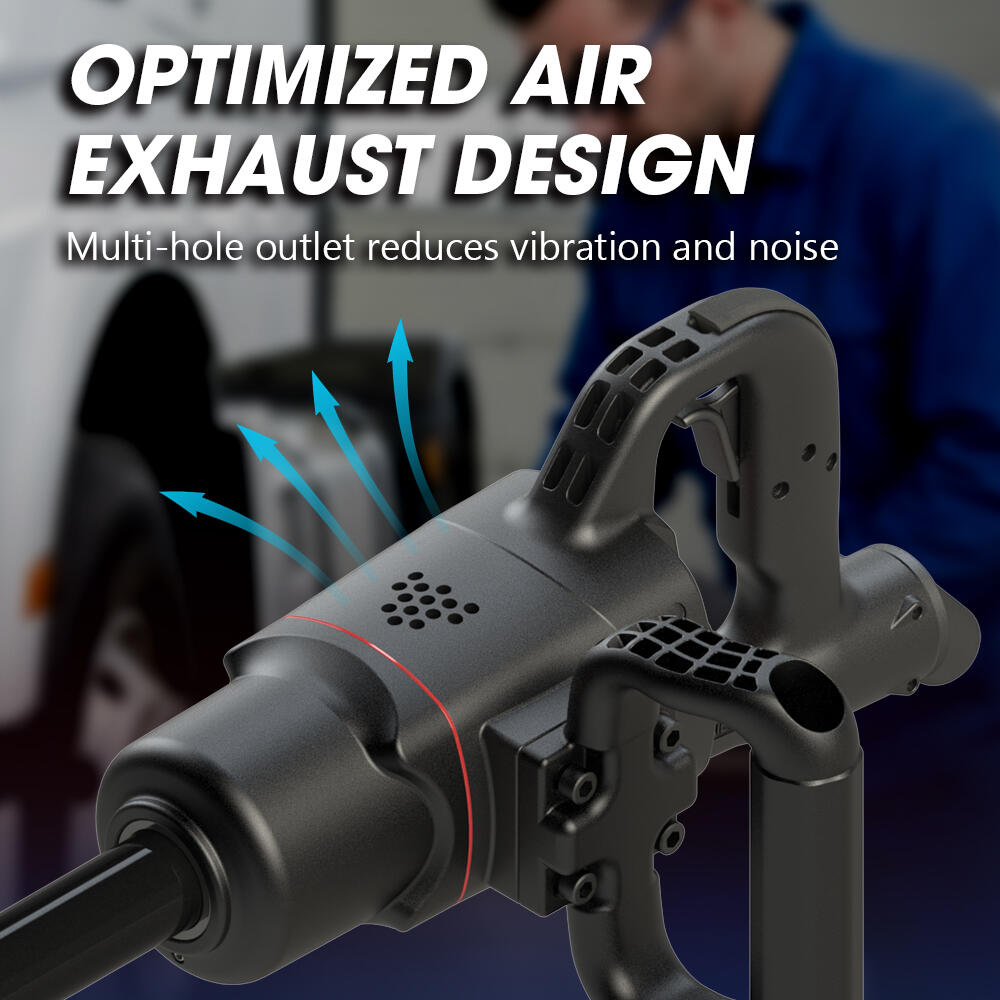

| Exhaust Type | Side Exhaust |
Frequently Asked Questions
A: The reinforced composite housing offers excellent resistance to impact and harsh workshop chemicals while significantly reducing tool weight (only 4.6kg), making it suitable for long-term, high-load operation.
A: We recommend the 6-inch extended anvil model when fasteners are deeply recessed (like truck dual wheels) or obstructed. The extended reach improves efficiency and safety by eliminating the need for unstable extension bars.
The Professional Choice for Deep Fastening Tasks
Contact Lematec for OEM/ODM inquiries and global distribution.
Request a Quote / Sample
