I. The Cost of Scattered Mandrels: A Logistics Liability

In high-density electronics or furniture assembly lines, spent rivet mandrels scattered on the floor are more than just a nuisance—they are a strategic safety liability. These sharp metal rods cause slip-and-trip accidents and can jam production machinery if they enter sensitive robotic zones.

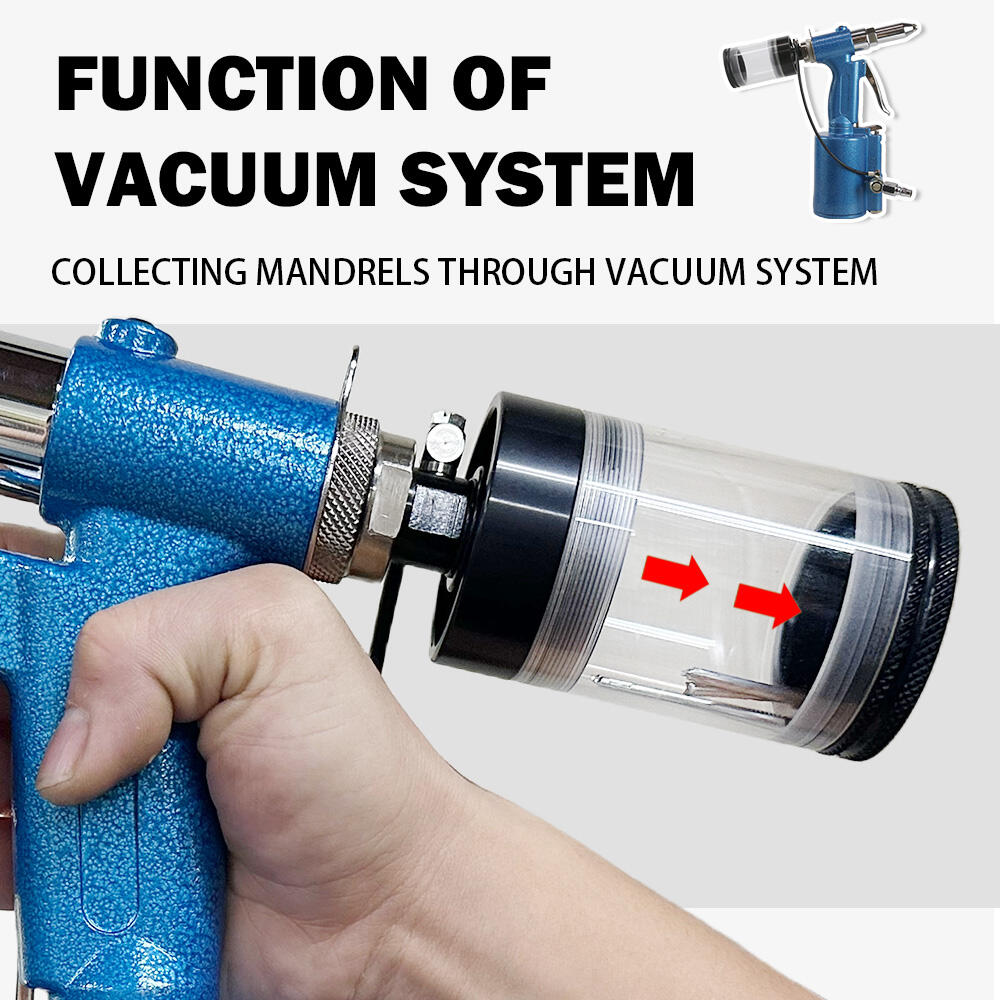

▲ Strategic Solution: The integrated vacuum system recovers mandrels before they ever touch the floor.

The LE-VS0101 addresses this through an optimized air circuit that creates a high-velocity suction path. Spent mandrels are instantly pulled into a transparent, high-impact collection bottle at the rear of the tool, allowing for rapid batch disposal and 100% clean-floor operations.

II. Technical Engineering Breakdown

Industrial reliability is defined by the coordination of kinetic power and mechanical safety features. The LE-VS0101 is engineered with specific components that guarantee zero downtime during high-volume fastening cycles.

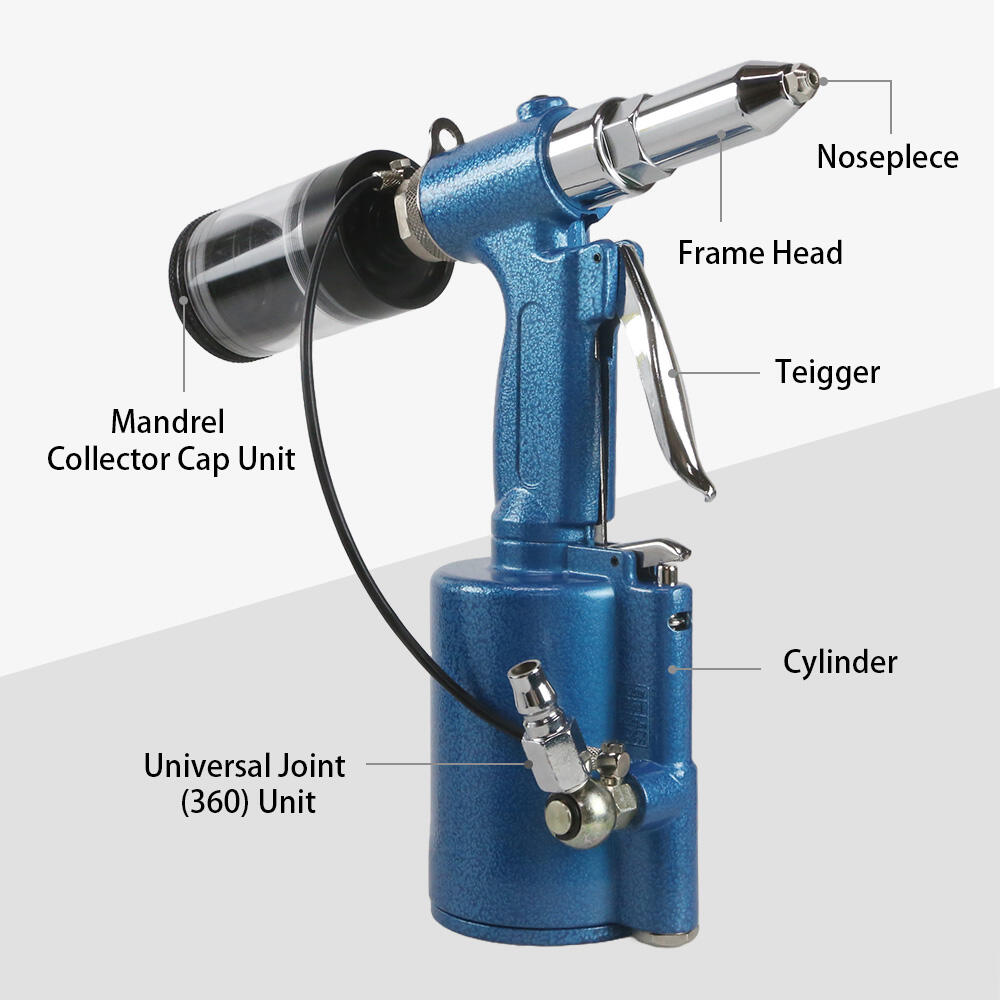

▲ Engineering Core: Detailed breakdown of the pneumatic-hydraulic vacuum system.

III. Data Summary for Sourcing

Traction Power	1045 kg.f (2303 Lbs.f) @ 85 PSI
Stroke Length	16 mm (0.63")

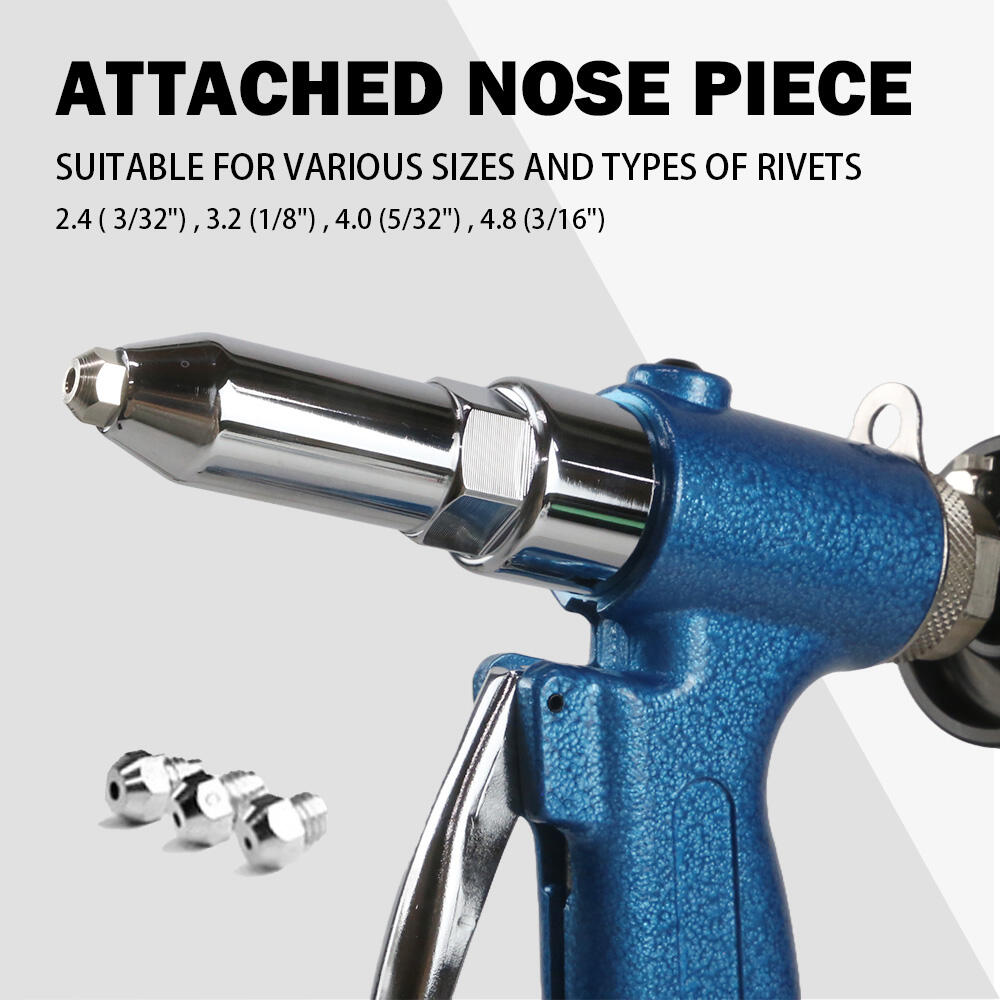

Rivet Capacity	2.4, 3.2, 4.0, 4.8 mm
Working Pressure	85 – 92 PSI (Standard)
Net Weight	1.50 kg (3.3 lbs)
Air Consumption	1.48 Liter / Cycle
Air Inlet Size	1/4" PT / NPT Universal
Hose Size	6.5 mm (1/4") I.D.

Tool Integrity Standard

IV. Detail Component Audit

V. Strategic OEM & ODM Support

LEMATEC provides end-to-end customization for global tool brands. From custom body colors to private-label laser engraving and tailored kit configurations, we help you differentiate your brand in the high-stakes industrial tool market.
