1/4" Mini Air Angle Die Grinder 90 Degree Type LE-G1343L | OEM / ODM Air Grinder Supplier
A compact 90-degree pneumatic die grinder for tight-space deburring, finishing, and OEM/ODM supply.
1/4" Mini Air Angle Die Grinder 90 Degree Type LE-G1343L | OEM / ODM Air Grinder Supplier
1/4" Mini Air Angle Die Grinder 90 degree type LE-G1343L is a compact pneumatic grinder for distributors, importers, and industrial tool buyers who need a 90-degree grinding solution for tight-space deburring, surface preparation, weld cleanup, and precision metalwork. It delivers 20,000 RPM, 0.3 HP output, 90 PSI operation, 4.5 SCFM average air consumption, and a lightweight 0.47 kg body.
LE-G1343L · 20,000 RPM · 90-Degree Head · 1/4" / 1/8" Collet
The right-angle head helps users reach engine bays, chassis recesses, internal corners, mold cavities, and tight metal frames where straight grinders are difficult to position.
With 20,000 RPM free speed and 0.3 HP output, the LE-G1343L supports controlled deburring, surface preparation, gasket residue removal, and small-area grinding tasks.
The 0.47 kg body helps reduce hand fatigue for users who need repeatable finishing and cleanup work across automotive repair, fabrication, and maintenance environments.
The product is easy to position: compact angle access, 20,000 RPM speed, dual collet compatibility, safety control, and practical use in metalwork and repair channels.
OEM / ODM and Wholesale Supply Support
LEMATEC supports distributors, importers, industrial tool brands, and private-label buyers seeking compact pneumatic grinders with sample validation, technical documents, product imagery, packaging discussion, and OEM/ODM project support.
90-Degree Compact Head
The right-angle transmission improves tool access when the work area blocks a straight grinder. This is useful for automotive repair, wheel wells, engine components, welded frames, tooling cavities, and narrow structural parts.

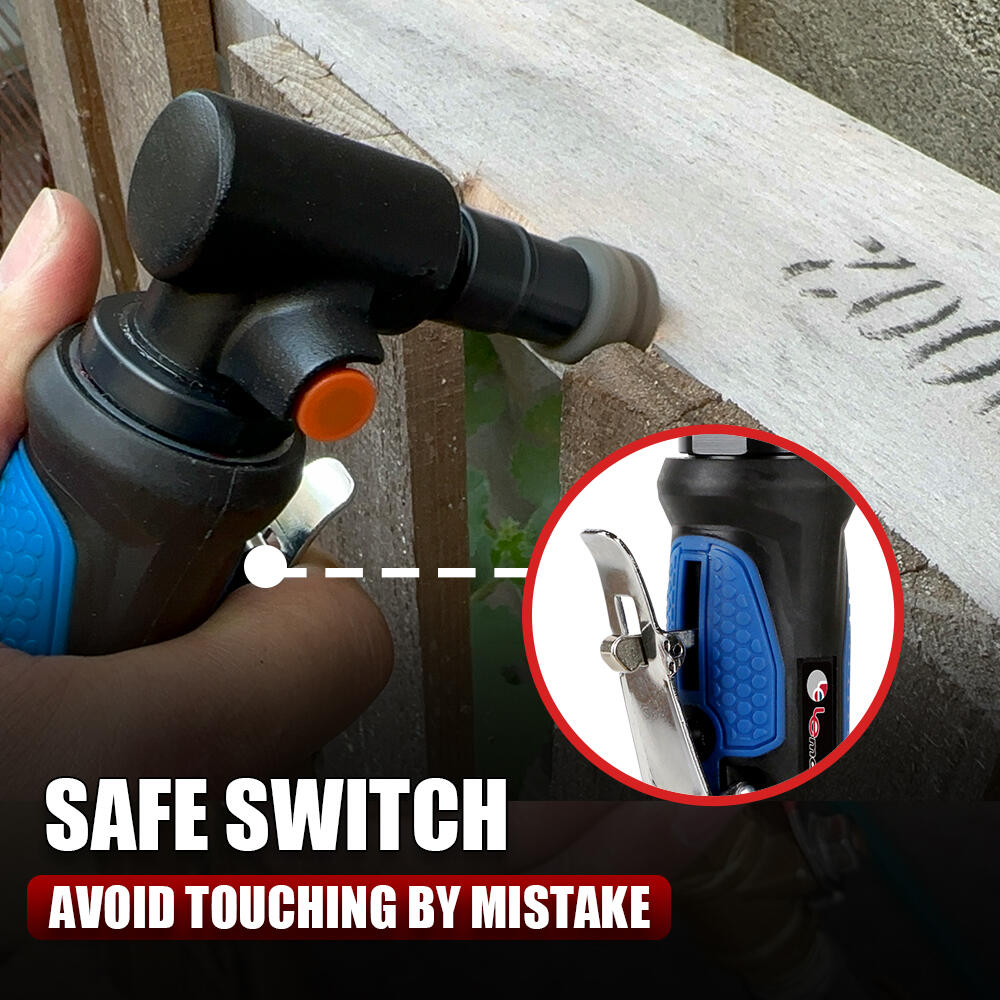

Safety Trigger and Speed Control
The ergonomic rubberized grip supports handling control, while the safety trigger helps prevent accidental activation. Built-in speed control lets operators adjust output for deburring, carving, polishing, and lighter finishing tasks.
| Use case | Recommended setup | Why it matters | Buyer check |
|---|---|---|---|
| Automotive repair | 90 PSI air supply, suitable burr or abrasive accessory, controlled RPM | Helps clean gasket residue, wheel well welds, and confined engine bay surfaces. | Confirm angle access, accessory type, and compressor capacity. |
| Metal fabrication | 1/4" collet with grinding stone or carbide burr | Supports weld seam dressing, edge cleanup, and internal radius deburring. | Check collet size, bit compatibility, and duty cycle expectations. |
| Mold maintenance | Lower speed setting with precision finishing accessory | Controlled output helps avoid over-removal on tooling surfaces. | Confirm surface material, desired finish, and operator control needs. |
| Distributor catalog | Position as a compact 90-degree grinder for tight-space finishing | Clear differentiation from straight die grinders and larger angle grinders. | Prepare product images, specs, packaging, and private-label requirements. |
| Selection factor | LE-G1343L 90-degree mini angle grinder | Straight die grinder |
|---|---|---|
| Best access | Confined spaces, corners, chassis recesses, vertical surfaces | Open areas, direct in-line work, pipe interiors, straight reaches |
| Tool control | Improves wrist angle where direct approach is blocked | Better for direct pressure and long linear grinding passes |
| Main buyer fit | Automotive repair, MRO, fabrication, mold maintenance | General grinding, open-space deburring, longer reach applications |
| Catalog positioning | Compact right-angle access tool | General-purpose straight finishing tool |
| Model | LE-G1343L |
|---|---|
| Product Type | 1/4" mini air angle die grinder, 90-degree type |
| Free Speed | 20,000 RPM |
| Power Output | 0.3 HP |
| Working Pressure | 90 PSI / 6.3 bar |
| Average Air Consumption | 4.5 SCFM |
| Collet Size | 1/4" (6 mm) / 1/8" (3 mm) |
| Net Weight | 0.47 kg / 1.03 lbs |
| Exhaust Type | Front directed exhaust |
| Recommended Buyer | Distributors, importers, automotive tool suppliers, industrial MRO channels, OEM/ODM buyers |
Choose it when the target user needs a compact 90-degree pneumatic grinder for tight-space deburring, surface preparation, weld cleanup, and precision finishing.
Buyers should confirm 90 PSI operating pressure and enough compressor capacity to support 4.5 SCFM average air consumption with extra air supply headroom for stable use.

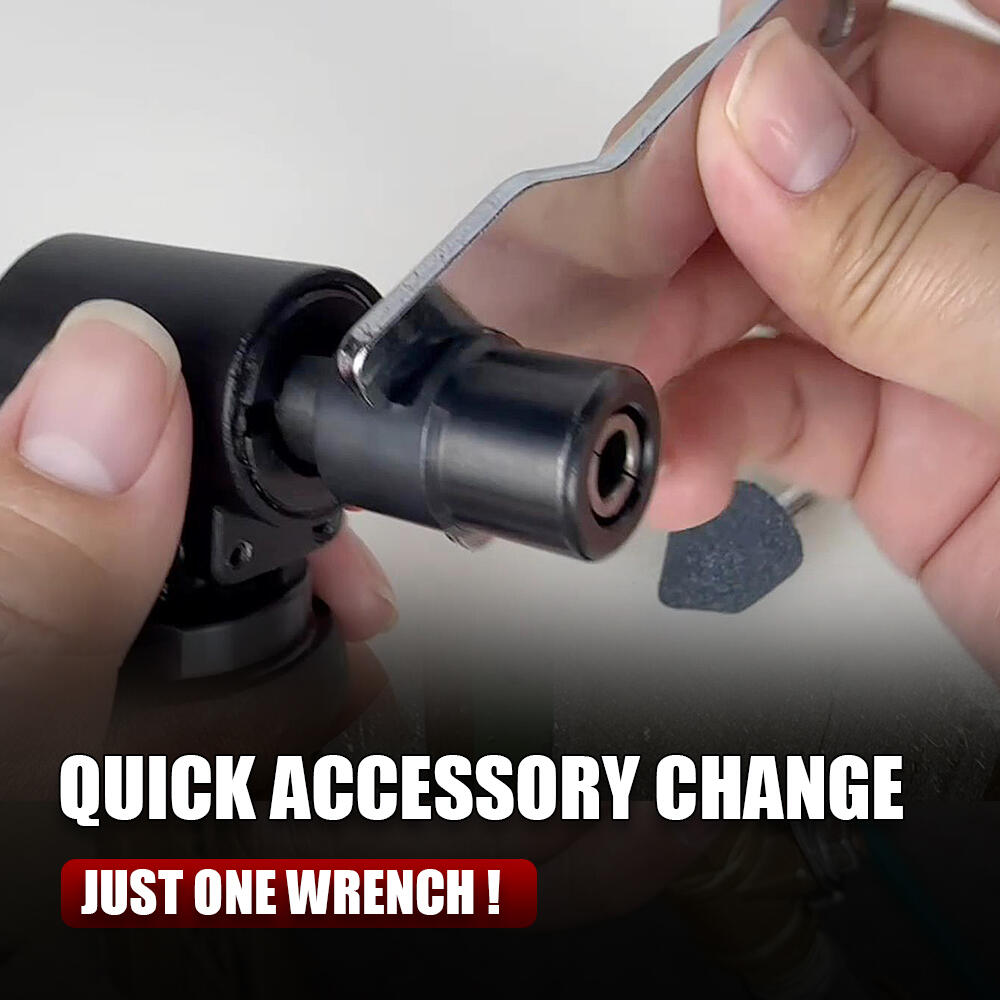

Yes. The source specifications list 1/4" (6 mm) and 1/8" (3 mm) collet support, allowing buyers to match common grinding, deburring, and finishing accessories.
LEMATEC can discuss private-label branding, packaging, sample validation, product imagery, technical documents, wholesale supply, and quote support based on the project scope.
Get the right 1/4" Mini Air Angle Die Grinder 90 degree type LE-G1343L setup
For distributor, importer, OEM/ODM, or private-label inquiry, send LEMATEC your target application, quantity, market, required specs, accessory requirements, packaging direction, and target delivery date. Our team can help confirm model fit, sample path, accessory match, and quote guidance.
- Application: automotive repair, fabrication, MRO, mold maintenance, or retail catalog
- Quantity and market: distributor, importer, private-label brand, or industrial channel
- Required specs: collet size, compressor capacity, accessory type, packaging, and branding needs
- Output: model recommendation, sample guidance, accessory match, and quote support
