Flexible Head Air Die Grinder Sander LE-G2543R
Flexible head pneumatic grinder sander for tight-space refinishing, deburring, and OEM tool programs.
LE-G2543R Flexible Head Air Die Grinder & Sander
Change the approach angle for localized grinding, deburring, and sanding. Straight, 90-degree, and 115-degree head positions give buyers an adjustable-head option for repair, fabrication, and maintenance tool programs.
Why Choose LEMATEC for the LE-G2543R
Compare straight, 90-degree, and 115-degree positions on your actual workpiece. The adjustable head changes the approach angle; confirm that the tool body, accessory, hand, and hose also clear the surrounding surfaces.
LEMATEC can review the listed speed, pressure, weight, and air consumption against your intended task. Confirm the supplied collet size, accessory limits, air-inlet connection, and package contents before a sample order.
Send a workpiece photo, material, access restriction, and target finish. A sample trial can check head-position stability, accessory clearance, handling, and the result with your planned abrasive and air supply.
LEMATEC can support sample review, product image assets, logo discussion, packaging direction, manual localization, and technical documentation for wholesale and OEM / ODM projects.
OEM / ODM and Wholesale Supply Support
Discuss branding, sample evaluation, packaging, and technical documentation for your target market. MOQ, customization scope, sample terms, lead time, and included accessories are confirmed with LEMATEC for the requested configuration.
Core Engineering Features

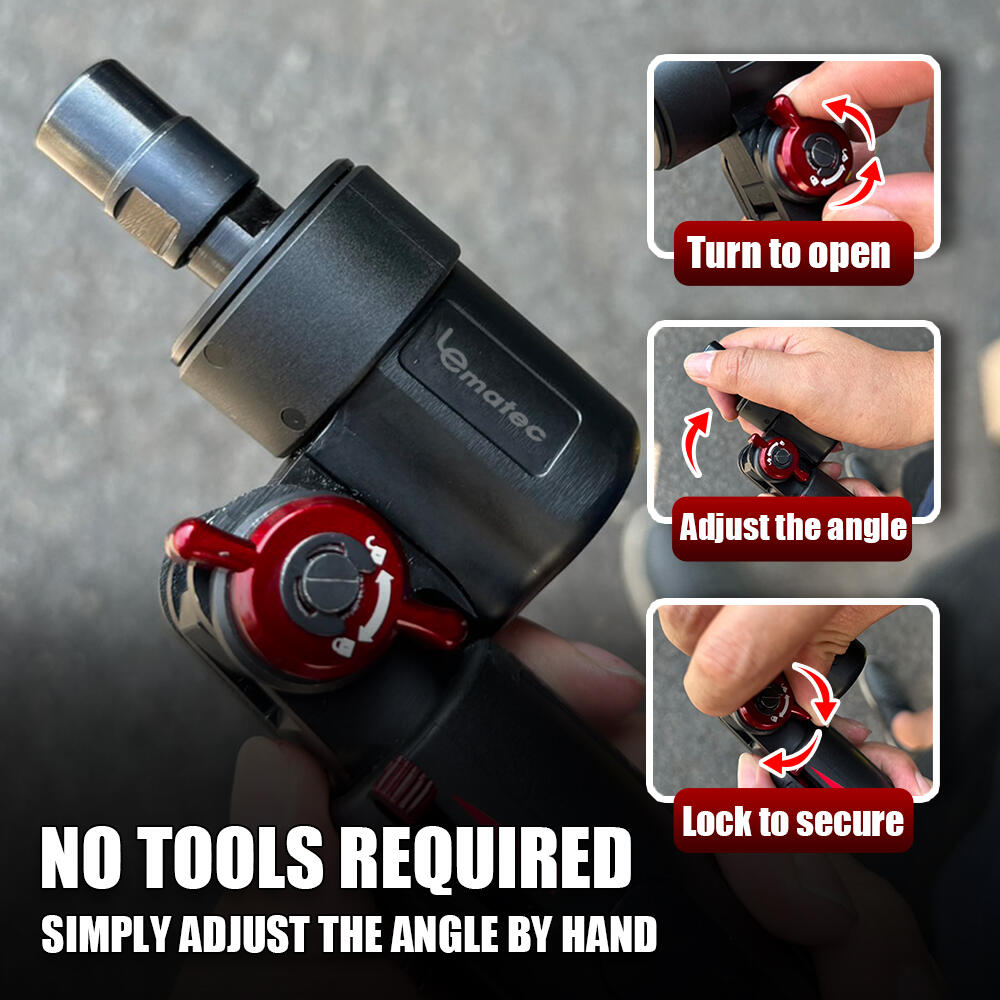

Flexible Head: Straight, 90 Degrees, and 115 Degrees
The head can be positioned straight, at 90 degrees, or at 115 degrees. The official image shows manual joint adjustment. Disconnect the air supply before repositioning, secure the joint, and follow the supplied instructions before operating; confirm clearance on the actual workpiece.

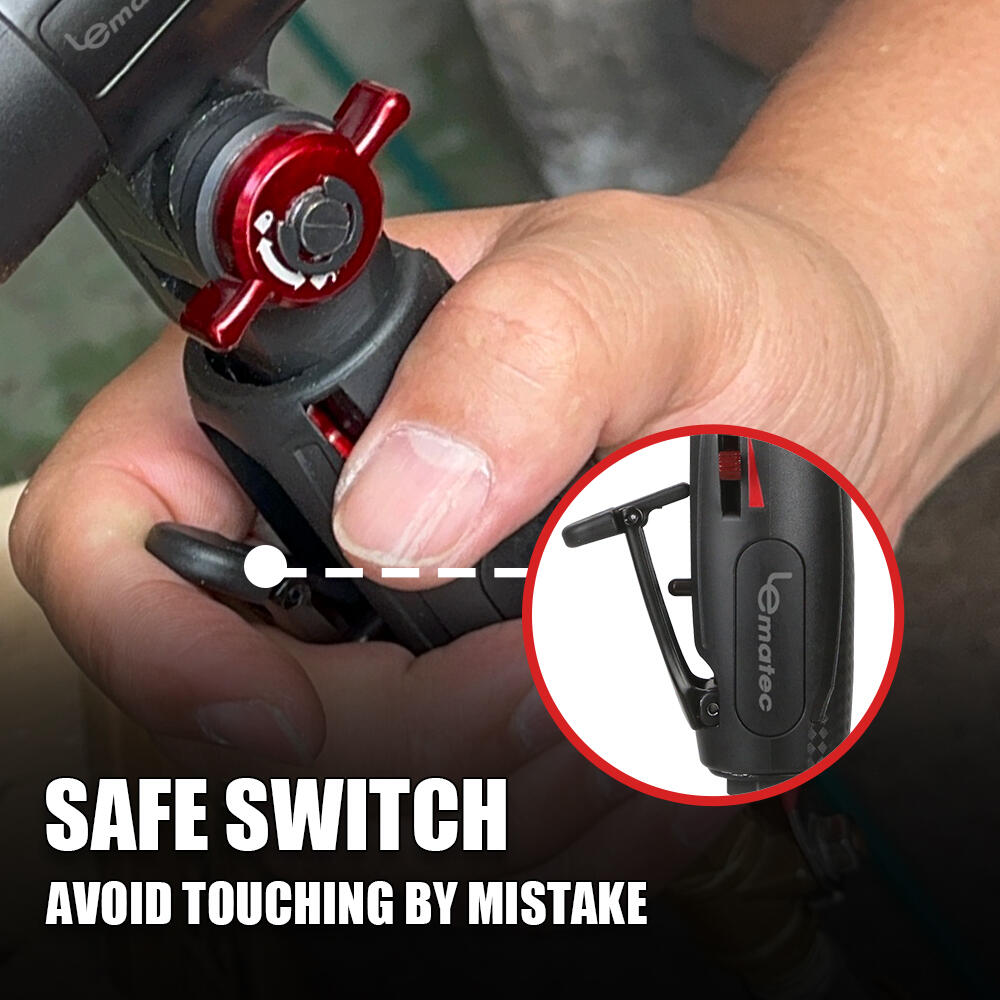

Safety Lever and Joint Check
The official detail image identifies the safety lever. During sample evaluation, check lever operation and that the adjusted joint remains secure under the intended task. The lever does not replace correct accessory selection or the tool operating instructions.
Working-Angle Access and Swivel Side Exhaust
The flexible-head illustration shows how the tool approach can change around the workpiece. The listing also specifies swivel side exhaust. Evaluate hand clearance, grip, and exhaust direction in the intended position; changing the head angle does not extend the tool reach.
Multi-Angle Use with the Correct Collet
The image illustrates several working positions. For each setup, match the accessory shank to the supplied collet and confirm the accessory type, diameter, speed rating, and permitted overhang. The listing identifies 1/4 inch / 6 mm collets; confirm which size is supplied rather than treating them as interchangeable.
Which Head Position Should You Evaluate?
Use these as sample-trial starting points. Photos show the concept; workpiece dimensions and accessory size determine whether the tool actually fits.
Evaluate when the accessory can approach along the tool axis and the handle has clear space behind it. Confirm shank exposure and body clearance.
Evaluate when a side approach is needed and a straight handle position is obstructed. Check the complete head-and-accessory envelope, not the angle alone.
Evaluate when the work surface calls for an oblique approach. Check contact, hand position, and hose clearance with the joint secured.
Application Fit and Adjustable Speed
The built-in control shown below allows speed adjustment for the intended task. The published 20,000 RPM is free speed, not a guaranteed speed under load. Select a compatible accessory rated for the tool and application; lowering the control setting does not establish compatibility for an otherwise unsuitable accessory.
Use Case and Buyer Check Table
| Use case | Recommended setup | Why it matters | Buyer check |
|---|---|---|---|
| Automotive refinishing and spot sanding | Select a head position after checking panel access; use a confirmed compatible sanding accessory | Changes the approach to a localized repair area; the tool body and accessory still need clearance. | Confirm pad size, finish requirement, air line setup, and target use environment. |
| Metal fabrication deburring | Exact matching collet and shank with an approved burr or mounted abrasive | Localized rotary grinding for edges and burrs; evaluate the result with the selected accessory. | Confirm shank size, accessory diameter, rated speed, permitted overhang, and material suitability. |
| Woodworking detail shaping | Straight or angled head with fine abrasive accessory | The listed net weight is 0.66 kg; evaluate handling and finish on a sample workpiece. | Confirm dust control, abrasive grade, and finish sensitivity. |
| Distributor catalog expansion | LE-G2543R as a flexible-head alternative to standard die grinders | An adjustable-head option for customers whose access angle changes between tasks. | Confirm packaging, MOQ, logo marking, sample needs, and target market positioning. |
Technical Procurement Specifications
| Model Number | LE-G2543R |
|---|---|
| Product Type | Flexible Head Air Die Grinder Sander |
| Head Positions | Straight / 90 degrees / 115 degrees |
| Free Speed | 20,000 RPM |
| Motor Power | 0.4 HP |
| Listed Collet Sizes | 1/4 inch / 6 mm; confirm the supplied size and package contents |
| Average Air Consumption | 5.5 SCFM |
| Working Pressure | 90 PSI (listed operating pressure) |
| Net Weight | 0.66 kg / 1.46 lbs |
| Exhaust | Swivel side exhaust |
| B2B Support | OEM / ODM discussion, private label, packaging, samples, bulk quote |
Three Setup Checks Before Sample Use
1/4 inch is 6.35 mm, not 6 mm. Confirm the supplied collet and accessory shank; do not assume one collet clamps both sizes. Ask which inserts and accessories are included.
Confirm that the accessory is approved for the tool speed, mounting method, diameter, and overhang. Do not infer that any polishing pad or cutting wheel is suitable from the tool category alone.
The listing specifies 90 PSI working pressure and 5.5 SCFM average consumption. Confirm sustained airflow, hose and coupler requirements, lubrication instructions, and the air-inlet thread for your workload.
Send the material, workpiece photo, access dimensions, accessory choice, and duty cycle. Confirm the permitted task, accessory configuration, package contents, and operating instructions with LEMATEC.
For a fixed approach, compare the LE-G1045 straight air die grinder or LE-G1343L fixed-angle die grinder. Confirm each model and accessory configuration separately.
FAQ for B2B Buyers
When is a flexible-head die grinder useful?
Consider it when the required approach angle changes between localized sanding, grinding, or deburring tasks. Evaluate the straight, 90-degree, and 115-degree positions on the actual workpiece; angle adjustment does not guarantee clearance or replace a dedicated tool for every job.
Are 1/4 inch and 6 mm accessories interchangeable?
No. A 1/4 inch shank is 6.35 mm. Match the accessory shank to the exact supplied collet and confirm the included inserts with LEMATEC before ordering.
Can I use any sanding or polishing attachment?
No. Confirm the accessory type, shank, diameter, mounting method, rated speed, and permitted overhang. The tool has a listed 20,000 RPM free speed; adjustment of the speed control does not make an unapproved accessory suitable.
What air supply does the LE-G2543R need?
The listing specifies 90 PSI working pressure and 5.5 SCFM average air consumption. Ask LEMATEC for sustained airflow, hose, coupler, inlet thread, and lubrication requirements for the intended duty cycle before sizing the air system.
What should I send for an OEM or wholesale quote?
Send LE-G2543R, target market, estimated quantity, application photos, access dimensions, required collet and accessories, branding, packaging, and target delivery date. LEMATEC will confirm configuration, MOQ, sample terms, customization scope, and lead time.
Request a LE-G2543R Sample or Technical Quote
Vic Chen - General Manager, LEMATEC Taiwan
Send a workpiece photo, access dimensions, material, preferred accessory, air-supply information, quantity, and target market. This helps LEMATEC review the angle, collet, and sample configuration before quoting. Connect with Vic Chen on LinkedIn.
Request Technical Quote and Samples
