How to Choose a Retractable Air Hose Reel:
Spring-Loaded vs Manual, PSI Ratings & Installation
A practical guide for mechanics, garage owners, and fleet managers — covering hose material, PSI requirements, mount types, and the most common mistakes
that shorten reel life.
Quick Answer: A retractable air hose reel stores compressed air hose on a spring-loaded drum that automatically rewinds the hose when released. For most workshops, choose a spring-loaded reel rated at 200 PSI (14 bar) with a PU mesh hose of 8–10 m (26–33 ft), ceiling or wall mounted with a 180° swivel inlet to eliminate floor tangles and reduce tool inlet wear.
Why Your Hose Management Matters More Than the Tool
Most technicians upgrade their impact wrenches and spray guns carefully — but use the same tangled hose dragged across a concrete floor for years. The hose is the link between your compressor and your tool, and how you manage it directly affects tool performance, safety, and equipment life.
A hose lying on the floor gets stepped on, run over, kinked, and abraded. Each kink creates a micro-restriction that reduces airflow and forces your compressor to work harder. More critically, loose hoses on workshop floors are the leading cause of trip injuries in automotive environments.
Key fact: A properly mounted retractable hose reel can extend hose service life by up to 3× compared to a free-coiled hose stored on the floor — primarily by eliminating kink damage and UV/chemical exposure.
Spring-Loaded vs Manual Retractable Reel: Which Should You Choose?
The retraction mechanism is the single most important decision. Here's how the two types compare across the criteria that matter in a professional setting:
| Feature | Spring-Loaded Auto Retract | Manual Retract (Hand Crank) |
|---|---|---|
| Retraction speed | Automatic — pull & release | Manual cranking required |
| Floor tangle risk | Near zero | Moderate if left extended |
| Hose whip safety | Speed governor controls retraction | No whip risk |
| Best for | Busy workshops, automotive bays, fleet MRO | Light use, storage rooms, occasional use |
| Maintenance | Spring tensioner check every 2 years | Minimal |
| Cost | Higher upfront | Lower |
| Verdict | ✔ Recommended for professional use | Acceptable for light residential |
Hose Material Comparison: Rubber, PVC, or PU Mesh?
The hose material determines flexibility, weight, temperature range, and abrasion resistance. The wrong material causes premature cracking or stiffness that shortens reel life.
| Material | Cold Flex (min temp) | Abrasion Resistance | Weight | Best For |
|---|---|---|---|---|
| PU Mesh (Polyurethane) | −20°C (−4°F) | Excellent | Lightest | All-weather workshops, automotive, MRO |
| Rubber | −10°C (14°F) | Excellent | Heavy | High-heat environments, heavy industrial |
| PVC | +5°C (41°F) — hardens in cold | Poor | Medium | Indoor light use only, not recommended for reels |
LEMATEC recommendation: PU mesh is the optimal choice for retractable reels in automotive and MRO settings. It stays supple in cold climates, resists floor abrasion better than PVC, and weighs less than rubber — making the spring retraction mechanism work more smoothly.
4 Factors to Check Before Buying
Choose a reel rated at minimum 200 PSI (14 bar). Most impact wrenches and spray guns operate at 90–120 PSI at the tool, but compressor surges and pressure peaks can exceed that — a 200 PSI rated reel provides the safety margin you need.
8 m (26 ft) covers a standard single-bay workshop from a ceiling mount. For multi-bay or truck service, consider 10–15 m reels. Over-extending a reel past its rated length causes spring tension failure over time.
A 180° swivel inlet allows the reel drum to rotate as the technician moves around the vehicle, preventing hose kinking at the inlet fitting — the most common failure point on fixed-mount reels.
High-quality spring reels include an internal speed governor that controls how fast the hose snaps back. Without one, a fast-retracting hose can whip and damage tools, vehicles, or injure technicians.
Ceiling Mount vs Wall Mount: Installation Guide
Where you mount the reel determines how the hose reaches the work area. Ceiling mounting is almost always superior in an automotive bay — it keeps the hose above head height until the technician pulls it down, eliminating the #1 workshop trip hazard.
Ceiling mount best practice: Position the reel directly above the center of the work area. The 180° swivel inlet means the drum can rotate as you work around the vehicle — pull from any angle without the hose binding at the reel drum.
Wall mount: Suitable for single-direction work stations or when ceiling installation is not possible. Use the highest point on the wall to maximize hose clearance above the floor.
Mounting hardware: Always fasten the mounting bracket into structural ceiling joists or concrete — not just drywall. A loaded 8 m reel weighs approximately 4–6 kg. Use M8 or larger bolts with appropriate anchors.
LEMATEC LE-HR250H ceiling-mounted with 180° swivel inlet — hose clears the floor in all directions
Air Hose Reel Problems & How to Fix Them
| Problem | Most Likely Cause | Fix |
|---|---|---|
| Hose won't retract fully | Spring tension worn / over-extended past rated length | Re-tension the spring via adjustment slot; do not exceed rated extension length |
| Air leak at swivel joint | Worn O-ring in swivel fitting | Replace swivel O-ring (standard NBR); apply thread sealant to NPT inlet |
| Hose snaps back too fast (whip) | No speed governor / governor worn out | Upgrade to a reel with internal speed control; never use a reel without one in an occupied workspace |
| Hose cracks or stiffens in winter | PVC hose in cold environment | Replace with PU mesh hose — rated flexible to −20°C |
| Low pressure at tool even with full compressor | Hose ID too small / hose kinked at reel inlet | Use minimum 6 mm (1/4") ID hose; check for kinking at the 180° swivel fitting |

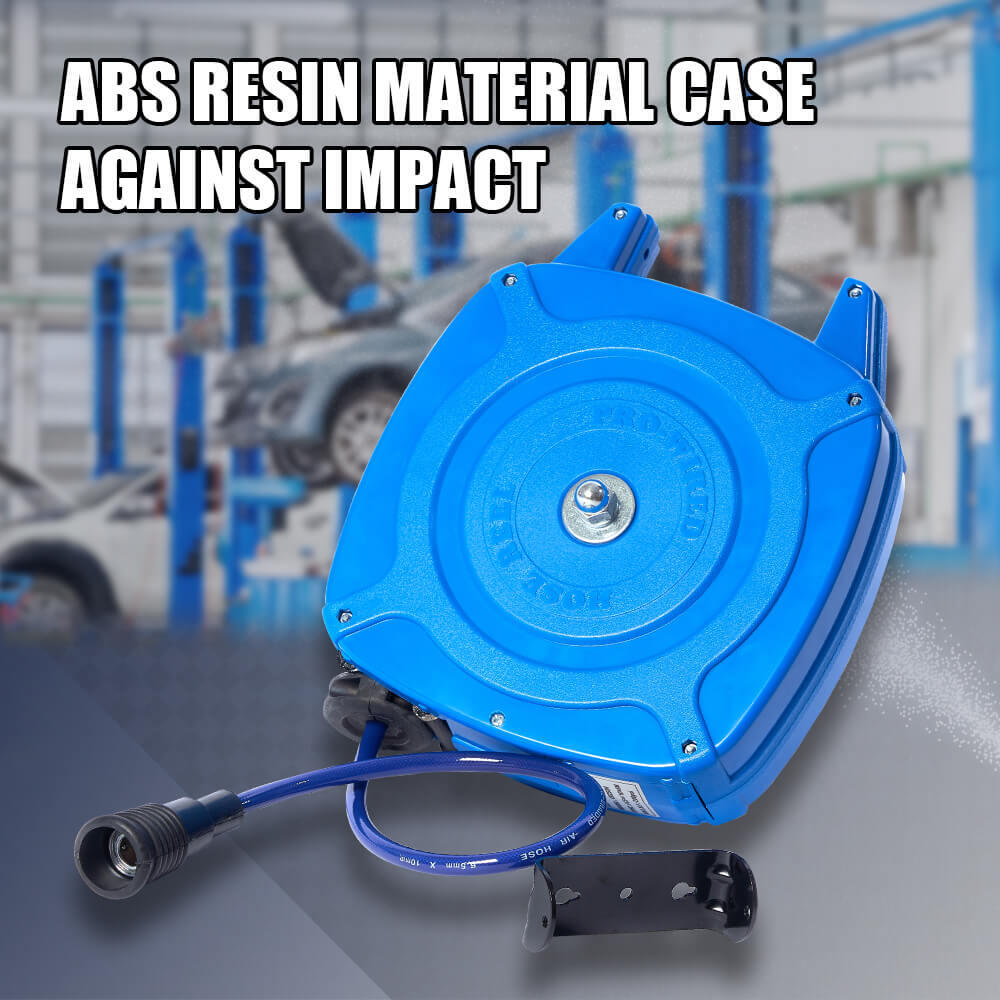

LEMATEC LE-HR250H
8 m PU Mesh Retractable Air Hose Reel
Built for automotive workshops, fleet maintenance bays, and industrial MRO — the LE-HR250H combines a spring-loaded auto-retract mechanism with a PU mesh hose rated to −20°C, housed in a 180° swivel ceiling/wall mount bracket.
